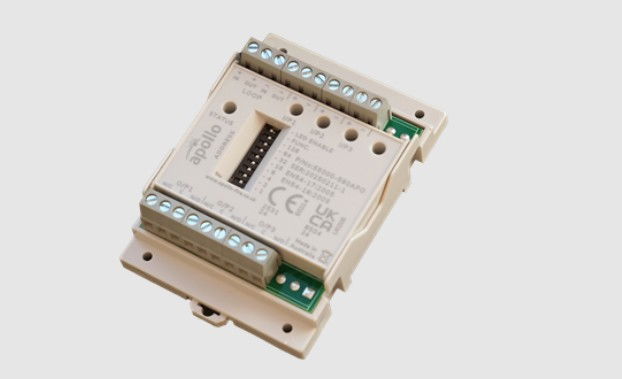

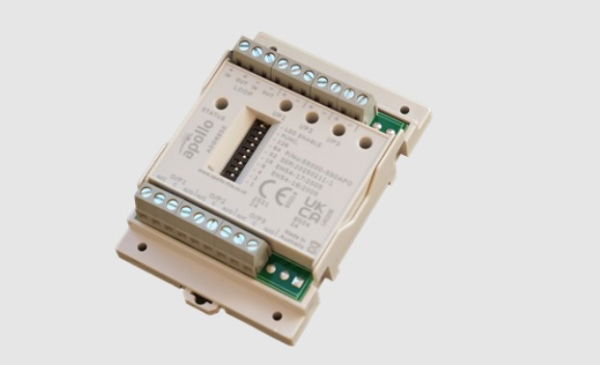

The XP95 Three Channel Input/Output Module - Isolating provides three single pole, voltage-free, clean contact change over relay outputs and three monitored switch inputs.
EN 54-17 & EN 54-18 Certified
- Uses a single loop address
- Built-in Short Circuit Isolator
- Quiescent current : 0.66 mA
- Power-up surge current : 5.97 mA
- Supply voltage (Vmin-Vmax) : 17 to 28 Vdc
- Colour : White
- Product height : 25mm
- Product width : 68mm
- Product length : 95mm
- Weight : 76g
