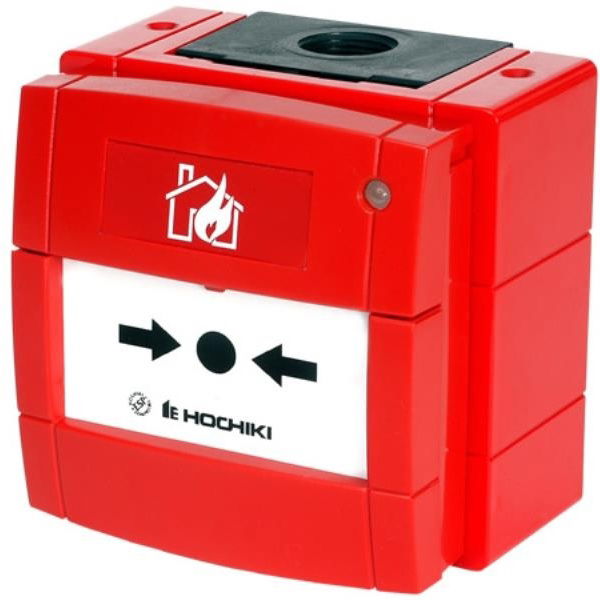

HCP-WM-SCI is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.
The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing*1 for communications polling and is continuously lit when the HCP-W/M(SCI) is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.
The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing. An optional glass element is also available.
Specification
- Operating Voltage : 17 – 41 VDC
- Low Power Mode : 180 μ (max), 100 μA (typ)
- Quiescent Current : 350 μA (max), 250 μA (typ)
- Alarm Current : 10.0 mA (max), 5 mA (typ)
- Resistance in positive : 100 mΩ when closed (max), 100 kΩ when open (min)
- Short-circuit threshold (typ) : 430 Ω
- Transmission Method : Digital Communication Using ESP
- Operating Temperature Range : -10 °C to + 50 °C
- Storage Temperature Range : -30 °C to + 70 °C
- Maximum Humidity : 95%RH - Non Condensing (at 40 °C)
- Ingress Protection Rating : IP67
- Colour / Case Material : Red / Modified Polyphenylene Oxide
- Weight (g) / Dimensions (mm) : 234 / W98 x H94 x W78
